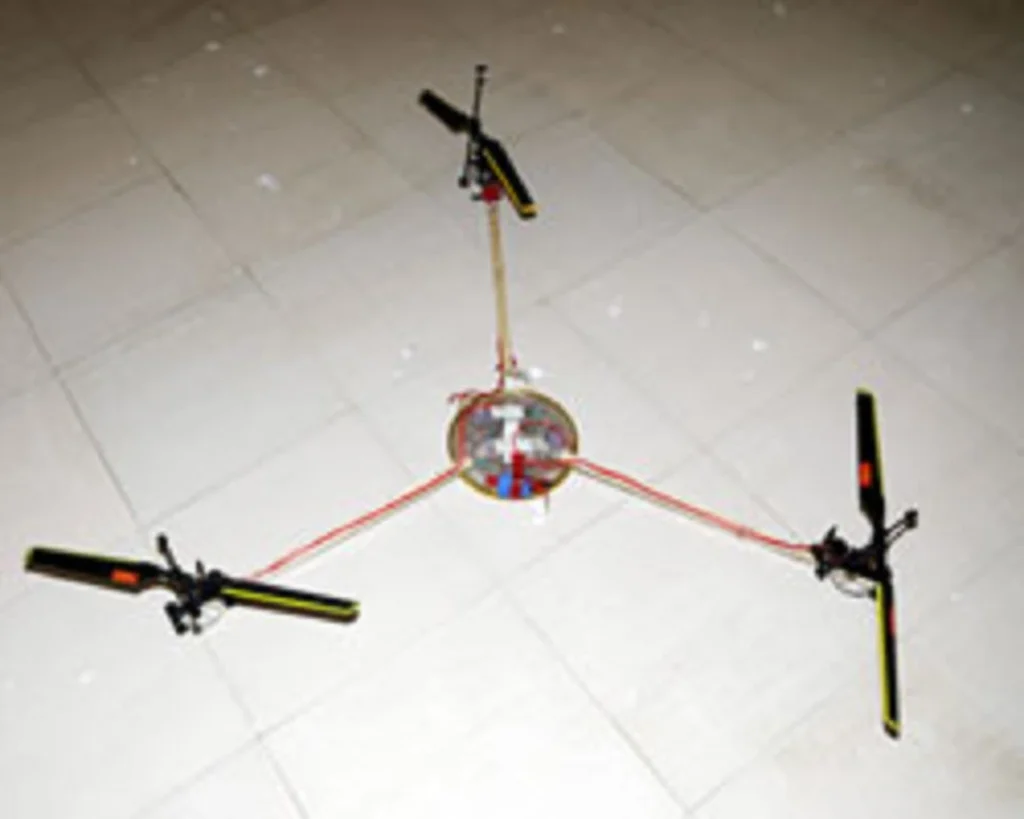

Project: Try-Copter
PROJECT STRUCTURE:
The try-copter is a three rotor helicopter that contains electronic & mechanical structure, RF modules for communication interfacing with hardware & operator. It contains a rotor, motor, electro-mechanical controller, camera, and body frame.
LATEST TECHNOLOGY:
Three rotor is the new technology for helicopters which provide easy controlling low power consumption than quad rotor, maximum lift, fixed rotor that give no complex for blade movement. Only motor speed control gives movement.
Team Members: 1. PAVAN JOSHI | 2. LUCKY PADIYAR | 3. ANKUR SATODIA | 4. PRADHUMAN ARYA
PROJECT GUIDED BY Mr. VASIM KHAN

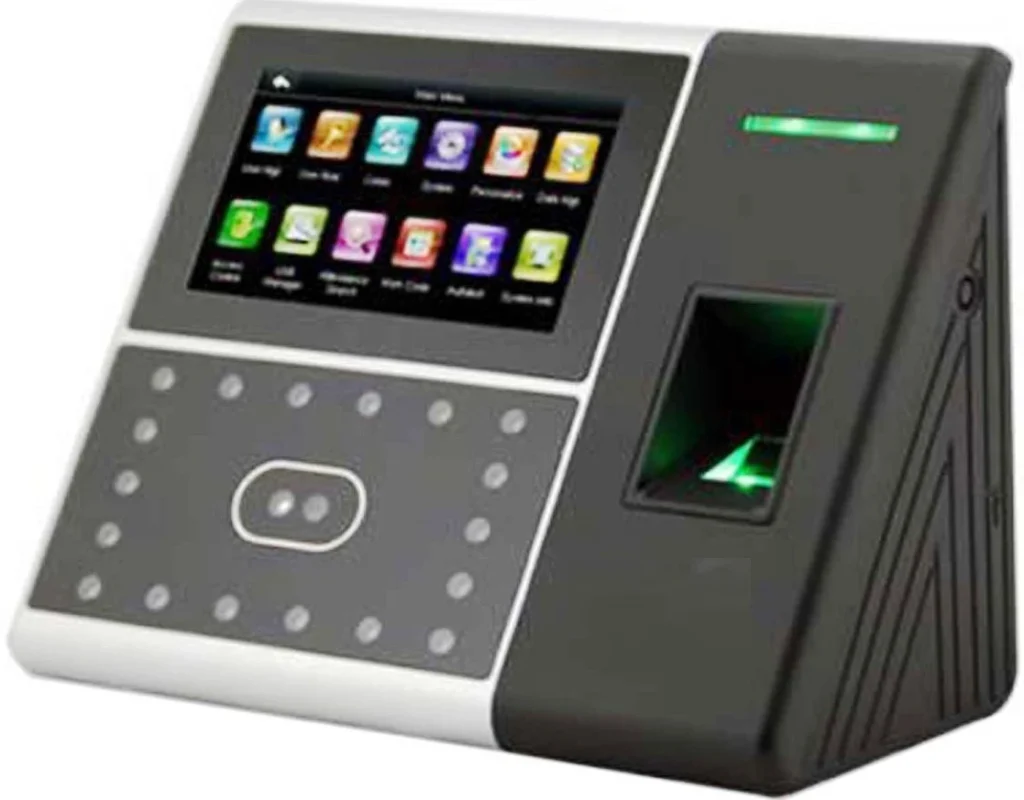

Project: Finger Print Scanner
Fingerprint scanner for attendance & time of arrival Management
PROJECT STRUCTURE:
The basic structure of finger print scanner consist of finger print sensor and the analytical circuit which compared the scanned finger print with the stored finger print of the employs in the database of organization & store the time of arrival and attendance of employee.
LATEST TECHNOLOGY:
Neurotechnology has released a new line of embedded biometric technology, including Verifinger embedded SDK for fingerprint biometrics, Verilog embedded SDK for face biometrics & Mega matcher embedded SDK for multi-biometric systems using face & fingerprints in combination.
Team Members: 1. Sagar Choudhary | 2. Vikas Gupta | 3. Vivek Paliwal | 4. Ashesh Parmar
PROJECT GUIDED BY Mr. IRSHAD AHAMAD

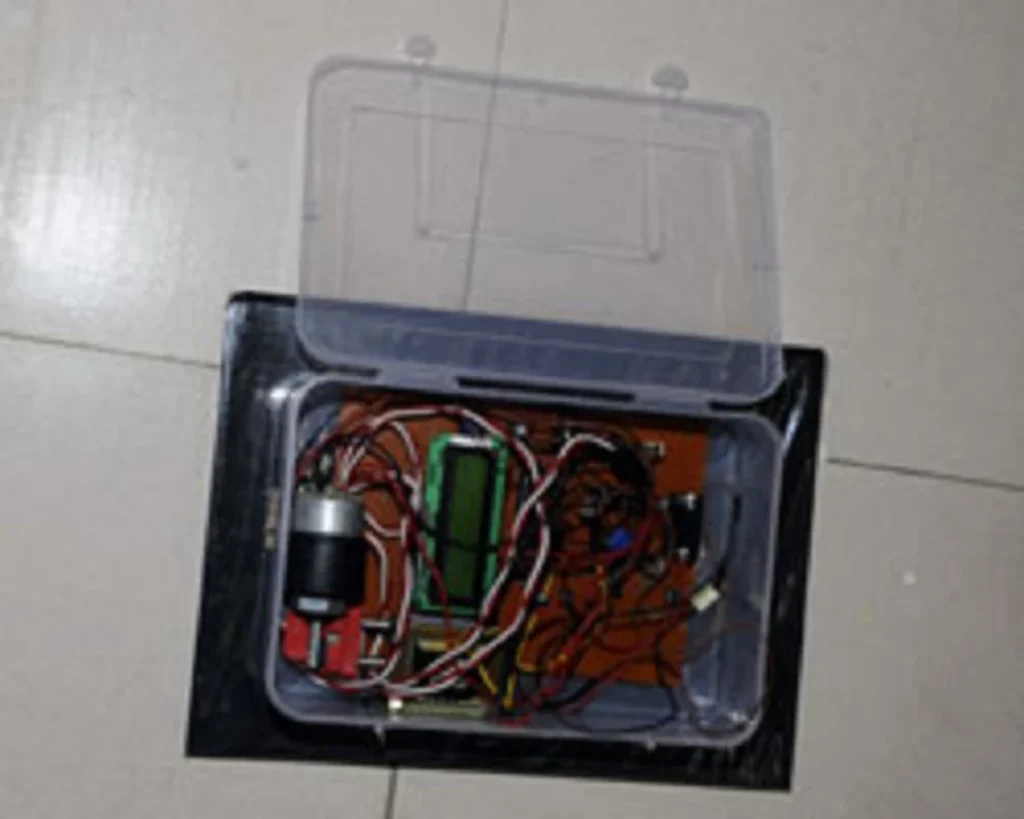

Project: Alcohol Meter Detector
PROJECT STRUCTURE:
This project is based on detecting alcohol present in the body of a person or specifically in a driver. The project is implemented with a four wheeler’s ignition system. An alcohol sensor may be fixed to the steering of the vehicle. It senses the alcohol vapors from the mouth of the driver. The amount of alcohol content sensed by detector i.e. the response is converted into the digital value and transferred to microcontroller. The LCD is given to show the alcohol content on the screen. The microcontroller is programmed such that if the alcohol content in driver’s body exceeds precised level .it turns the ignition off through the relay, so that the car won’t start.
LATEST TECHNOLOGY:
The sensor which we are using in this project is MQ3 which sense alcohol vapors from the mouth of driver & converted the sensed vapours into digital value & transfered it to the microcontroller.
Team Members: 1. Kumar Sanket | 2. Lavi Jain | 3. Prabha Mishra
PROJECT GUIDED BY Mr.VASIM KHAN

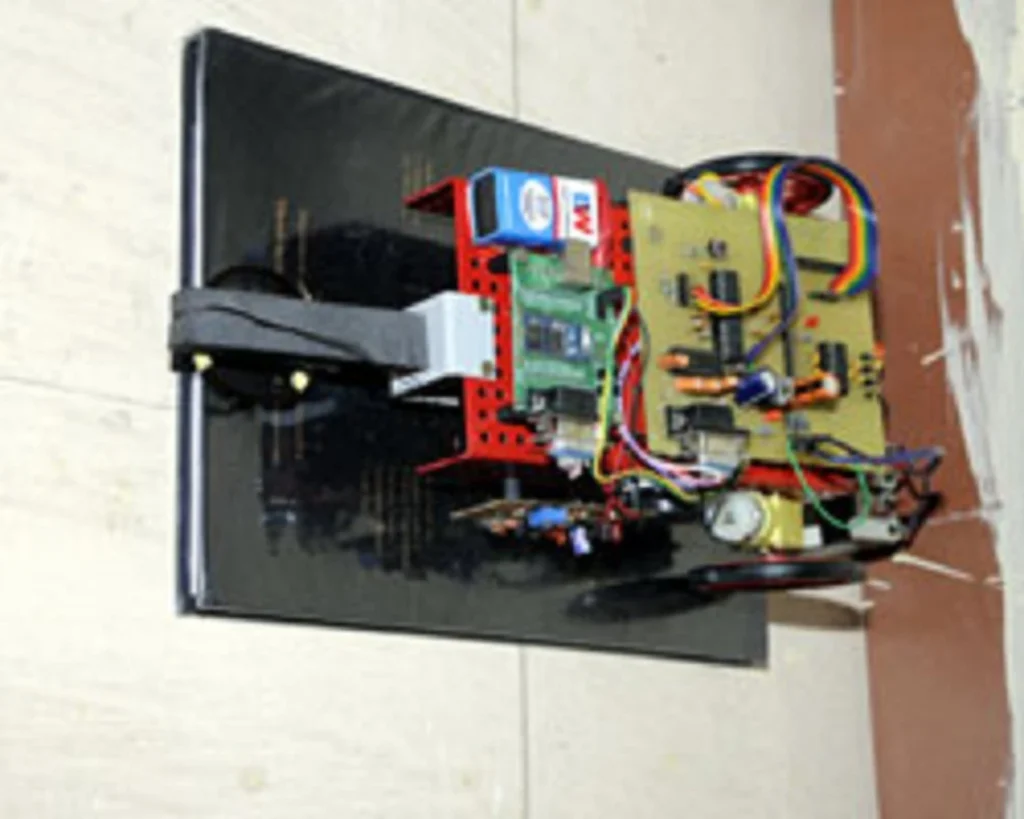

WIRELESS MOBILE CONTROLLED ROBOT
PROJECT STRUCTURE:
DTMF mobile ROBO is a machine that can be controlled with a mobile. In this project,the robot is controlled by a mobile phone that makes a call to the mobile phone attached to the robot. In the course of a call, if any button is pressed, a tone corresponding ti the button pressed is heard at the other end of the call.This tone is called “Dual Tone Multiple-frequency”(DTMF)tone. The robot precives this DTMF tone with the help of the phone stacked on the robot.The received tone is processed by the microcontroller with the help of DTMF decoder.
LATEST TECHNOLOGY:
In this project the robot,is controlled by a mobile phone that makes call to the mobile phone attached to the robot in the course of the call, if any button is pressed control corresponding to the button pressed is heard at the other end of the call.this tone is called dual tone frequency tone (DTMF). DTMF signaling is used for telephone signaling over the line in the voice frequency band to the switching center.The version of DTMF used for telephone dialing is known as touch tone. DTMF assigns a specific frequency (consisting of two separate tones)to each key that it can easily be identified by the electronic circuit. The signal generated by the DTMF encoder is the direct algebraic submission, in real time of the amplitudes of two sine(cosine) waves of different frequencies.
Team Members: 1. RAVIKANT DANDOTIYA | 2. DHARMESH TIWARI | 3. SWARAJ SOLANKI | 4. ANAND GURJER
PROJECT GUIDED BY Mr. PIYUSH DUBEY
Project: SECURITY SYSTEM
PROJECT STRUCTURE:
The security system will inform you immediately with SMS(text) message your mobile when “unauthorized guest”enters yours premises.System includes GSM module and Passive Infra Red senser(PIR) The entire device is contained within a small plastic enclosure and it looks like simple PIR motion detector.
LATEST TECHNOLOGY:
The system supports the contact ID protocol which is required to transmit signal to a security satation.All configuration can be programmed using the IR sensor configuration Tool program IR868 version with installed 876MHZ radio transmitter-reciever can operate as an access point wireless devices.
Team Members: 1. R.P.ANAND | 2. PRASHANT KUMAR RANA | 3. SURENDRA SINGH TOMAR
PROJECT GUIDED BY Prof. JITENDRA SINGH DODIYA

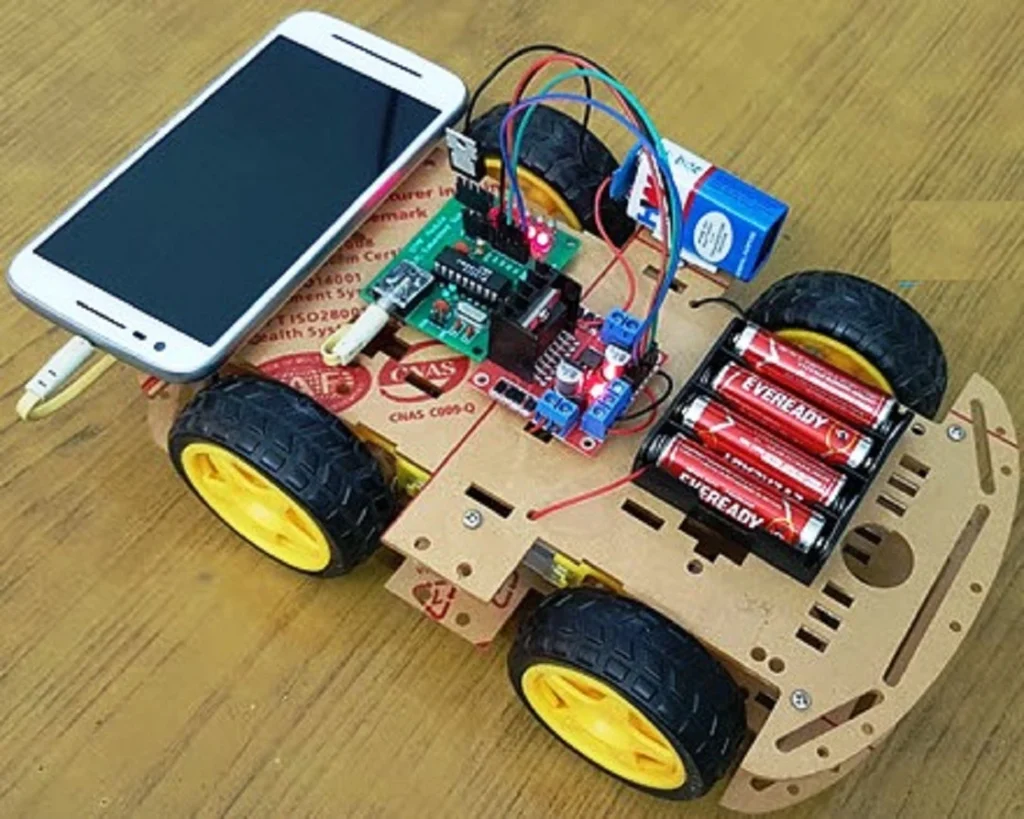

Project: MOBILE CONTROLLED SPY ROBOT USING DTMF TECHNOLOGY
PROJECT STRUCTURE:
DTMF mobile ROBO is a machine that can be controlled with a mobile.In this project, the robot is controlled by a mobile phone that makes a call to the mobile phone attached to the robot. In the course of a call ,if any button is pressed,a tone corresponding to the button pressed is heard at the other end of the call. This tone is called ”Dual Tone Multiple-Frequency”(DTMF)tone.The robot perceives this DTMF tone with the help of the phone stacked on the robot. The receives tone is processed by the motor driver IC stop operate the motor& our robot starts moving.
LATEST TECHNOLOGY:
The latest technology used in this project is the use of DTMF.The DTMF technique outputs distinct representation of 16 common alphanumeric character(0-9,A-D,*,#)on the telephone. The lowest frequency used is 697HZ and the highest frequency used is 1633HZ. The DTMF keypad is arranged such that each row will have its own unique tone frequency and also each column will have its own unique tone frequency.
Team Members: 1. BHUPENDRA SINGH TOMAR | 2. ANKIT MISHRA | 3. SHOBHIT JAIN
PROJECT GUIDED BY Mr. IRSHAD AHAMAD
Project: WIRELESS ELECTRONIC NOTICE BOARD
PROJECT STRUCTURE:
This project deals about an advanced hi-tech wireless notice board.This project is built around the AT89C51microcontroller from Atmel.This microcontroller provides all the functionality of the display and wireless control. Alphanumerical keypad is interfaced to the transmitter to type the data and transmit.This project uses regulated 5V,1Vpower supply,7805 three terminal voltage regulater is used for voltage regulation.Bridge type full rectifier is used to rectify the AC output of secondary of 230/12V step down transformer.
LATEST TECHNOLOGY:
The message can be transmitted to multi point receivers. After entering the text ,the user can disconnect the keyboard.At any time the user can add or remove or alter the text according to his requirement.
Team Members: 1. ABHISHEK R.TIWARI | 2. ANURAG TRIPATHI | 3. SOURABH SINGH RAJPOOT | 4. GAURAV BHARGAV
PROJECT GUIDED BY Prof. JITENDRA SINGH DODIYA
Project: ATTENDANCE MARKER USING FINGERPRINT SENSOR
PROJECT STRUCTURE:
DTMF mobile ROBO is a machine that can be controlled with a mobile.In this project, the robot is controlled by a mobile phone that makes a call to the mobile phone attached to the robot. In the course of a call ,if any button is pressed,a tone corresponding to the button pressed is heard at the other end of the call. This tone is called ”Dual Tone Multiple-Frequency”(DTMF)tone.The robot perceives this DTMF tone with the help of the phone stacked on the robot. The receives tone is processed by the motor driver IC stop operate the motor& our robot starts moving.
LATEST TECHNOLOGY:
The latest technology used in this project is the use of DTMF.The DTMF technique outputs distinct representation of 16 common alphanumeric character(0-9,A-D,*,#)on the telephone. The lowest frequency used is 697HZ and the highest frequency used is 1633HZ. The DTMF keypad is arranged such that each row will have its own unique tone frequency and also each column will have its own unique tone frequency.
Team Members: 1.ASHIMA AWASTHI | 2.AMITA DHENGEKAR | 3.ANKITA PARDESI | 4.RUCHIRA PANDEY | 5.SONAL GOUR
PROJECT GUIDED BY Prof. ANAMIKA VERMA
